Inductors
JANTZEN Cross Coil Foil Inductors
 |
Every single Jantzen Cross Coil goes through specially developed Jantzen Anti-Oxidant Treatment and Measurement, which guarantees lifelong top performance. |
|
A hardwood core makes it possible to wind the coils extra close. This results in a very low magnetoshrinking factor and virtually zero FM distortion, which makes it very close in all respects to an "ideal inductor". The tolerance is +/-3.0% where the normal industry standard is set at +/-5%. Copper purity is 99.99%. |
|
With Jantzen Cross Coil, you have an eminent opportunity to upgrade your existing loudspeaker system, and set them soaring to new performance heights. |
Pricing
|
Value
mH
|
Bobbin
|
AWG
|
DCR
(ohms)
|
Price (SGD$) Each |
AWG
|
DCR
(ohms)
|
Price
(SGD$) Each
|
AWG
|
DCR
(ohms)
|
Price
(SGD$) Each
|
|
0.90
|
wood
|
N.A.
|
N.A.
|
N.A.
|
14
|
0.23
|
$49.50
|
N.A.
|
N.A.
|
N.A.
|
|
1.0
|
wood
|
16
|
0.34
|
$42.80
|
14
|
0.24
|
$50.50
|
12
|
0.18
|
$68.00
|
|
1.1
|
wood
|
16
|
0.36
|
$43.50
|
N.A.
|
N.A.
|
N.A.
|
N.A.
|
N.A.
|
N.A.
|
|
1.2
|
wood
|
N.A.
|
N.A.
|
N.A.
|
14
|
0.27
|
$55.50
|
12
|
0.20
|
$76.50
|
|
1.35
|
wood
|
16
|
0.40
|
$47.20
|
N.A.
|
N.A.
|
N.A.
|
N.A.
|
N.A.
|
N.A.
|
|
1.50
|
wood
|
16
|
0.43
|
N.A
|
14
|
0.31
|
$61.40
|
12
|
0.23
|
$80.70
|
|
2.2
|
wood
|
N.A.
|
N.A.
|
$61.90.
|
14
|
0.4
|
N.A
|
12
|
0.29
|
N.A
|
|
2.7
|
wood
|
N.A.
|
N.A.
|
N.A.
|
14
|
0.44
|
$90.55
|
12
|
0.33
|
N.A
|
JANTZEN Baked Wire Coil Inductors
| \ |
Jantzen wind their coils with baked wire, which which omit the requirement for plastic bobbins. The coils are |
| very tight and exactly winded with techniques especially developed by their R & D department. Since no glue | |
| are used, there are no air bubbles inside the coil. Their tolerance is +/- 1,5% to meet High-End demands. | |
|
Optimised winding geometry to give ideal value/dcr ratios. |
|
99.99% pure copper wires of 1.2mm(16.5 gauge) are used and these inductors, air core and iron core, |
| represent excellent value. |
Pricing
|
Value
mH
|
Type
|
WireSize
|
DCR(ohms)
|
Price
(SGD$) per unit
|
|
0.82
|
air core |
1.2mm |
0.37 |
$18.40 |
|
0.90
|
air core |
1.2mm |
0.39 |
$19.20
|
|
1.0
|
air core |
1.2mm |
0.41 |
$20.50
|
|
1.20
|
air core |
1.2mm |
0.46 |
$22.50
|
|
1.50
|
air core |
1.2mm |
0.52 |
$24.75
|
|
1.80
|
air core |
1.2mm |
0.57 |
$29.85
|
|
2.70
|
iron core |
1.2mm |
0.22
|
$30.45
|
|
3.30
|
iron core |
1.2mm |
0.25
|
$34.70
|
|
4.70
|
iron core |
1.2mm |
0.31 |
$40.00
|
|
5.60
|
iron core |
1.2mm |
0.35 |
$42.50
|
|
6.80
|
iron core |
1.2mm |
0.40 |
$44.60
|
|
8.20
|
iron core |
1.2mm |
0.39 |
$48.50
|
|
12.0
|
iron core |
1.2mm |
0.51 |
$55.00
|
Please contact us for other values not listed above
MUNDORF INDUCTORS

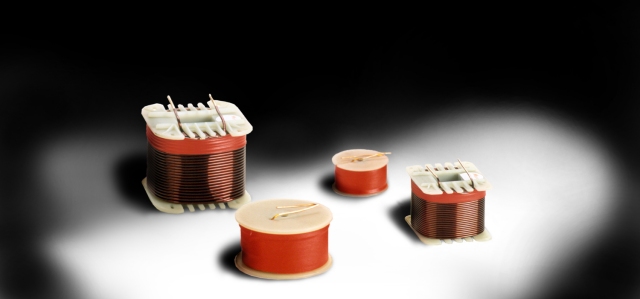

Air Core Audiophile Inductors
Specifications: Tolerance: Max 3%, typically 1.5%;Electrolyte copper 99.99 % pure Coil forms:PA, glass fibre reinforced

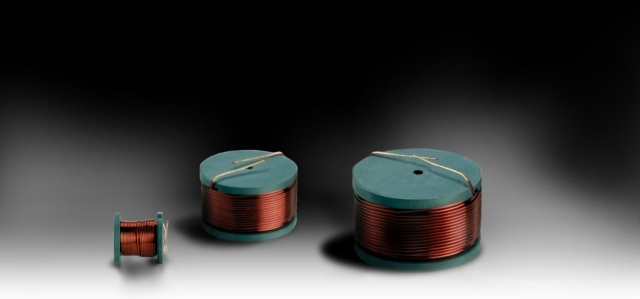

Ferrite Cored Audiophile Inductors
Specifications: Core material: HP 3616;Tolerance: Max. 3%;Electrolyte copper 99.99% pure
Our high-performance
HP 3616 ferrite is the answer for many users' need for an inexpensive, high-power
ferrite material. The mechanical advantages of these relatively small coils
are obvious, but it wasn't until this new HP 3616 material became available
that we could even consider adding a ferrite core to our product line. This
German-made ferrite offers a significantly higher performance than the cheap
Asian cores used in many other products. The HP series combines excellent
electrical and mechanical specifications with relatively low unit costs.
|
Value
mH
|
Type
|
WireSize
|
DCR(ohms)
|
Price
(SGD$) per unit
|
|
0.10
|
air
core
|
1.0mm
|
0.14
|
$7.30
|
|
0.15
|
air
core
|
1.0mm
|
0.16
|
$7.60
|
|
0.22
|
air
core
|
1.0mm
|
0.23
|
$8.30
|
|
0.33
|
air
core
|
0.71mm
|
0.43
|
$5.80
|
|
0.33
|
air
core
|
1.0mm
|
0.26
|
$8.50
|
|
0.33
|
air
core litz
|
1.9mm
|
0.14
|
$33.50
|
|
0.47
|
air
core
|
1.0mm
|
0.32
|
$9.40
|
|
0.56
|
air
core
|
1.0mm
|
0.36
|
$9.80
|
|
0.68
|
air
core
|
1.4mm
|
0.26
|
$16.80
|
|
2.7
|
ferrite
core
|
1.0mm
|
0.27
|
$20.20
|
|
3.3
|
ferrite
core
|
1.0mm
|
0.28
|
$21.20
|
|
3.9
|
ferrite
core
|
1.0mm
|
0.31
|
$24.20
|
We also cater to special orders for models not listed above. Please e-mail for assistance.
Freight / Shipping charges extra (for overseas buyers); 7% GST not included.
| Note: | |
|
- |
OEM pricing available to bona-fide manufacturers. |
|
-
|
All prices listed above are in Singapore (SGD) dollars. |
|
|
|
